Most of the data manipulation in OpenFOAM happens on fields – more specifically, tensor fields. These are matrices of data – velocity, pressure, etc.

There are three element types manipulated in OpenFOAM – and these are the standard mathematical quantities that we normally work with – scalars, vectors, and tensors.

1. List: Basic array of objects with allocation and resizing
2. PtrList: Basic array of pointers
3. Field: A List with algebra operations
4. Dimensioned Field: A Field with I/O, dimension set, name, mesh reference
5. Geometric Field: Dimensioned Field consisting of a internal field, boundary conditions etc

A Field is just a container (list) with algebra operations defined for it. A temperature field dictionary is shown below as an example:

FoamFile //data file header
{
    version     2.0;
    format      ascii;
    class       volScalarField;
    object      T;
}

dimensions      [0 0 0 1 0 0 0]; //keyword dimension of field (Input to dimensionedSet)

internalField   uniform 0; //keyword for value of internal field

boundaryField //keyword for value of boundary field
{
    inlet
    {
        type            fixedValue;
        value           uniform 1;
    }
}

What you see in a dictionary like this is just a set of key-value pairs: the first segment is the data file header – which reads values from the dictionary entry FoamFile.

The second keyword – dimensions, is what I’m now interested in – this provides fields with a dimension. This is what makes a field – a dimensionedField, i.e. a field class which accepts a dimensionedSet argument into its constructor.

dimensionedField
(
const IOobject& io,
const Mesh& mesh,
const dimensionSet& dims,
const Field <Type >& field
);

The I/O format for a dimensionSet is 7 scalars in a square bracket. In our example it was temperature:

dimensions      [0 0 0 1 0 0 0];

This attaching of dimensions serves as a safeguard against meaningless operations. We’ll do a quick test in code to see how this works in practice. Here, we use our code template from the previous article . Add a dimensionedScalar (templated on dimensionedField)

dimensionedScalar inputPressure =
dimensionedScalar
(
"pressure", /// A name field
dimensionSet( 1, -1, -2, 0, 0, 0, 0 ),
1.0 /// Value to initialize
);

Note – you could have just as easily read this from a dictionary too if you had a dictionary entry like this inputPressure pressure [1 -1 -2 0 0 0 0] 1.0; This entry just contains the name, dimensionSet, and the value to initialize with.

Now, create another dimensionedScalar as follows:

dimensionedScalar Number =
dimensionedScalar
(
"dimless", /// A name field
dimless,
1.0 /// Value to initialize
);

Here – we create a scalar “Number” with no dimensions – a dimensionless quantity. Now try doing something as simple as:

inputPressure = Number;

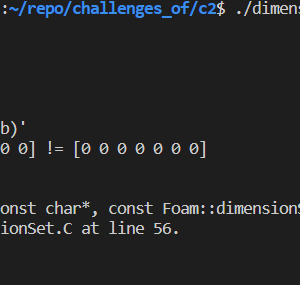

You see the dimensions do not match – which breaks the run and asks the user to check and correct dimensions of the quantities.
